Porcelain Diamond Blades

PAMTT Mesh Type Turbo Porcelain Blade

  • PAMTT3
    PAMTT4
    PAMTT4.5
    PAMTT5
    PAMTT7
    PAMTT8
    PAMTT10
    PAMTT12

  • Porcelain, Hard Ceramics

  • Mini Grinder / Hand Held Rotary Tool - 3”
    Variable Speed Grinder - 4”, 4.5”, 5”
    Wet Saw - 7”, 8”, 10”, 12”
    Skil Saw - 7”, 8”

  • 3”
    4”
    4.5”
    5”
    7”
    8”
    10”
    12”

    • This blade requires periodic sharpening

    • This blade is Dry and Wet Use (3” to 8”) and Wet use only (10”, 12”)

Mesh Type Turbo Segment

The Mesh Type Segment was engineered to revolutionize the way we think about and use diamond blades. This special segment design grants its user a better cutting quality than the dated continuous rim style segment, while minimizing stress fractures in the segment when enduring intense heat.

DIamond Knock Out for Skil Saw

The Diamond Knock Out feature is a unique component on this blade series because it allows users to mount one of our 7” or 8” dry blades on a Skil Saw, in addition to mounting the blade onto a Tub Saw.

Silent Core Hub

The Silent Core Hub feature greatly reduces the sound the blade makes while cutting through all working materials.


CAET Ultra Compact Porcelain Blade

  • CAET-3

    CAET-4

    CAET-4.5

    CAET-5

    CAET-6

  • Porcelain, Porcelain Slab, Ultra Compact Tile, Ultra Compact Slab, Natural Quartzite

  • Mini Grinder - 3”
    Variable Speed Grinder - 4”, 4.5”, 5”, 6”

  • 3

    4

    4.5

    5

    6

    • Dry and Wet Cutting

    • This blade requires periodic sharpening

    • This blade can be mounted onto a flange adapter. 4 hole, 32 mm c to c

The Alpine Segment & Four Hole Flange Adapter

The Ultimate blade features for an unforgettable cutting experience.

The ALPINE Mesh Segment was engineered to revolutionize the way we think about and use diamond blades. This special segment design grants its user a better cutting quality than the dated continuous rim style segment, while minimizing stress fractures in the segment when enduring intense heat. The Added Alpine Feature allows the blade the work in either rotational direction.

The 4 Hole Flange Adapter feature allows this blades user to mount the diamond blade to the grinder using a flange adapter, affording the user further cutting space while on a grinder.

CARPD Rapido Porcelain Blade

  • CARPD-4
    CARPD-4.5
    CARPD-5

  • Porcelain, Hard Ceramics, Engineered Stones, Granite

  • Variable Speed Grinder

  • 4”
    4.5”
    5”

    • This blade requires periodic sharpening

    • This blade is designed for both Dry and Wet Use

CADF Hummingbird Porcelain Blade

  • CADF7

    CADF8

    CADF10

    CADF12

    CADF14

    CADF16

  • Porcelain Tile, Porcelain Slab, Porcelain Paver, Ultra Compact Material

  • 7”
    8”
    10”
    12”
    14”
    16”

  • Wet Saw - 7”, 8”, 10”, 12”

    Bridge Saw - 12” 14”, 16”

    • This product is WET USE only

    • This blade requires periodic sharpening

CAPEG Pegasus Porcelain Blade

  • CAPEG-7

    CAPEG-10

  • Porcelain Tile, Porcelain Slab, Porcelain Paver, Ultra Compact Material

  • 7”
    10”

  • Wet Saw

    • This product is WET USE only

    • This blade requires periodic sharpening

CAMS Monarch Porcelain Blade

  • CAMS7

    CAMS8

    CAMS10

  • Porcelain Tile, Porcelain Slab, Porcelain Paver, Ultra Compact Material

  • 7”
    8”
    10”

  • Wet Saw

    • This product is WET USE only

    • This blade requires periodic sharpening

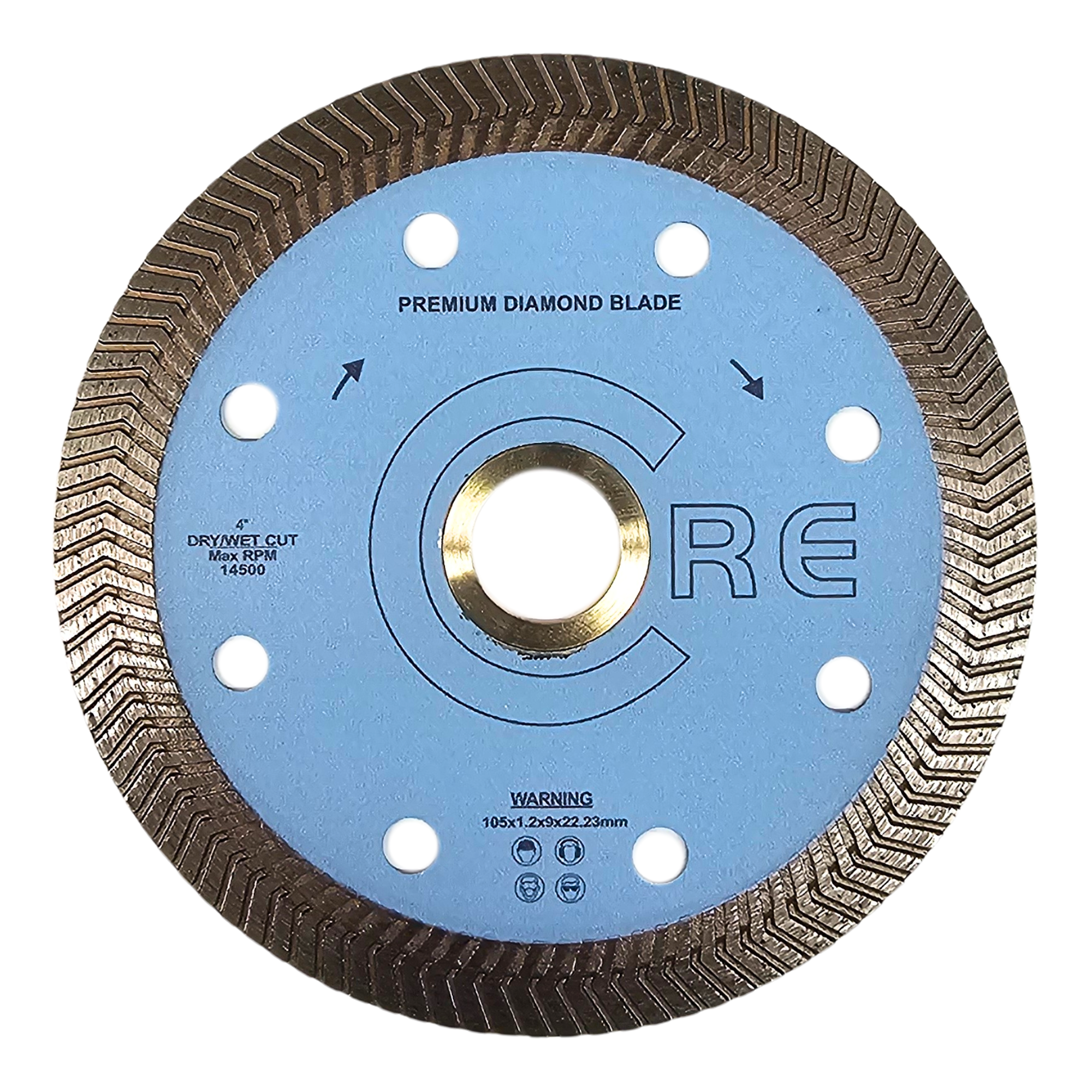

CAPYT Python for Porcelain and Ceramic

  • CAPYT-4
    CAPYT-4.5
    CAPYT-5

  • Porcelain Tile, Hard Ceramics

  • Variable Speed Grinder

  • 4”

    4.5”

    5”

    • Dry and Wet Cutting

    • This blade requires periodic sharpening

    • To maximize performance, It is recommended to dress the blade before use.

CALZR Laser Porcelain Blade

  • CALZR-4
    CALZR-4.5
    CALZR-5

  • Porcelain, Hard Ceramics

  • Variable Speed Grinder

  • 4”
    4.5”
    5”

    • This blade requires periodic sharpening

    • This blade is designed for both Dry and Wet Use

The Almighty Cutter

The ultimate ultra compact blade with a hybrid segment design

Featuring a dual segment design which utilizes two diamond mounting processes to afford it’s users access to unparalleled cutting capabilities. The core segment is a Sintered Mesh Type design, with the addition of electroplating Synthetic Diamond onto one side of the blade. This set up combines into a unique cutting experience for all users who work mainly in dense Porcelain and Porcelain Slab.

CAGLF Almighty Cutter with Diamond Face for Porcelain

  • CAGLF-4.5
    CAGLF-5

  • Porcelain, Porcelain Slab, Ultra Compact Tile, Ultra Compact Slab, Natural Quartzite

  • Variable Speed Grinder

  • 4.5”
    5”

    • Dry and Wet Cutting

    • This blade requires periodic sharpening

    • This blade can be mounted onto a flange adapter. 4 hole, 32 mm c to c

CAGL Almighty Cutter with Silent Core Hub for Porcelain

  • CAGL-5

  • Porcelain Tile, Porcelain Slab, Porcelain Paver, Natural Quartzite, Ultra Compact Materials

  • Variable Speed Grinder

  • 5”

    • This blade requires periodic sharpening

    • This blade is Dry and Wet Use

CAPOS Ultra Thin Porcelain Blade

  • CAPOS4-1.2T

    CAPOS4.5-1.2T

    CAPOS5-1.4T

  • Porcelain Tile, Hard Ceramics

  • 4”
    4.5”
    5”

  • Variable Speed Grinder

    • This product is Dry and WET use

    • This blade requires periodic sharpening

PAPOS Ultra Thin Porcelain Blade

  • PAPOS4-1.2T

    PAPOS4.5-1.2T

    PAPOS5-1.4T

  • Porcelain Tile, Hard Ceramics

  • 4”
    4.5”
    5”

  • Variable Speed Grinder

    • This product is Dry and WET use

    • This blade requires periodic sharpening

PAPO J-Slot Porcelain Blade

  • PAPO180-1.6T-J

    PAPO200-1.7T-J

    PAPO250-2.0T-J

    PAPO300-2.2T-J

    PAPO350-2.4T-J

  • Porcelain Tile, Ceramics, Engineered Stone

  • 7”
    8”
    10”
    12”
    14”

  • Wet Saw
    Bridge Saw - 12”, 14”

    • This product is WET USE only

    • This blade requires periodic sharpening

CAXRS Renegade Ultra Compact Blade

  • CAXRS-5

  • Porcelain, Porcelain Slab, Ultra Compact Tile, Ultra Compact Slab

  • Variable Speed Grinder

  • 5”

    • Dry and Wet Cutting

    • This blade requires periodic sharpening

    • This blade can be mounted onto a flange adapter. 4 hole, 32 mm c to c

    • The blade features a depressed center to enhance cutting stability

Mesh Type Turbo Segment

The Mesh Type Segment was engineered to revolutionize the way we think about and use diamond blades. This special segment design grants its user a better cutting quality than the dated continuous rim style segment, while minimizing stress fractures in the segment when enduring intense heat.

Wave Body Turbo Rim

The WAVE BODY feature is designed to aggressively disrupt airflow while the diamond blade is in motion, keeping your blade cooler than ever while under stress.

Depressed center with 4 hole flange option

The depressed center enhances stability, while the strategically placed four-hole pattern, 32mm CTC, allows for seamless attachment with a flange adapter, making it versatile and efficient.


CAMCD Multi Cutter Ultra Compact Blade

  • CAMCD-5

  • Porcelain Tile, Porcelain Slab, Porcelain Paver, Natural Quartzite, Ultra Compact Materials

  • Variable Speed Grinder

  • 5”

    • This blade requires periodic sharpening

    • This blade is Dry and Wet Use

    • This Blade features a 32 mm c to c 4 hole flange adapter mounting option
